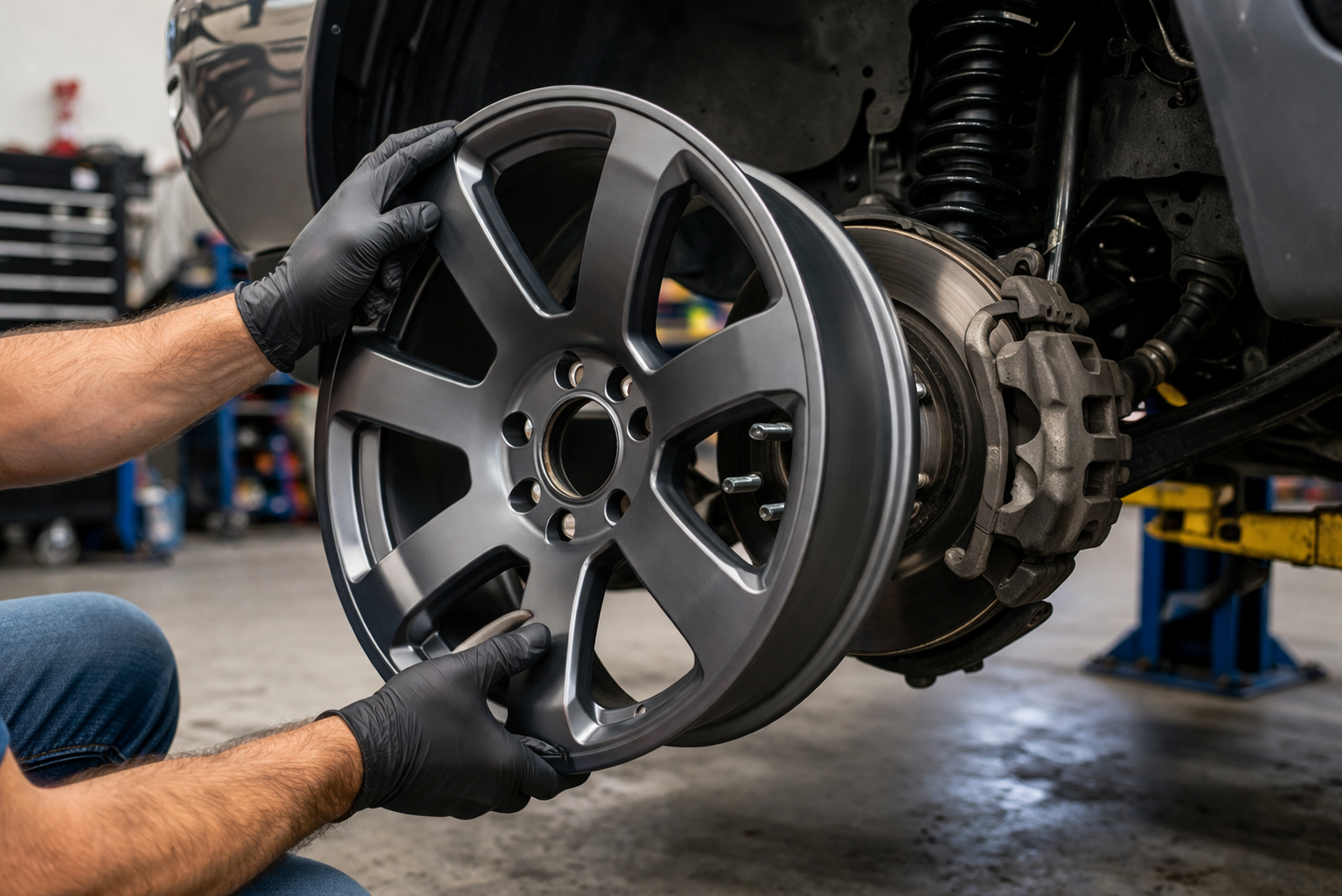

Always Test Fit Wheels Before Mounting Tires

Short answer: Always test fit new wheels on the hub before mounting tires. Even if the bolt pattern is correct, offset, backspacing, hub bore, and brake clearance can still be wrong. Once the tire is mounted, most shops will not take the wheel back. Then you own it.

Tools I Use When Test Fitting Wheels

Quick Access:

• Torque Wrench (properly torque wheels after test fit)
• See all my wheel fitment and shop tools here

As an Amazon Associate, I earn from qualifying purchases.

Why You Should Always Test Fit Wheels First

A wheel can bolt onto the hub and still be wrong. That is where people get burned. The bolt pattern may line up, but the offset can be off, the backspacing can be wrong, the hub bore may not seat correctly, or the wheel may hit the brake caliper.

That is why I always test fit a bare wheel before a tire ever gets mounted. It takes a few minutes, costs nothing, and can save you from owning a wheel you cannot return.

Once a tire is mounted, most places treat that wheel as used. At that point, the mistake is yours.

What Can Go Wrong If You Skip This Step

• Brake caliper interference
• Wrong offset causing the wheel to sit too far in or out
• Backspacing issues
• Hub bore not fitting the hub correctly
• Wheel not sitting flush
• Suspension or steering clearance problems
• Rubbing at full lock on the front

Any one of those problems can turn a brand-new set of wheels into an expensive headache.

How to Test Fit Wheels Before Mounting Tires

1. Take the new wheel out of the box.
2. Set the bare wheel on the hub.
3. Hand tighten the lug nuts enough to seat the wheel properly.
4. Check that the wheel sits flush.
5. Rotate the wheel by hand and watch for caliper or suspension contact.
6. If it is a front wheel, turn the steering and check clearance through the range.
7. If everything looks good, remove the wheel and put it back in the box until tire mounting.

That simple check can save you a few hundred dollars fast.

f you’re already working on hubs or replacing a seized wheel bearing, it’s the perfect time to test fit your new wheels before mounting tires. I covered that process here: How to Remove a Seized Wheel Bearing When It Won’t Budge.

What I Check During a Test Fit

• Bolt pattern: obvious, but only the first step
• Hub bore: the wheel needs to seat correctly on the hub
• Offset: this changes where the wheel sits in relation to the suspension and fender
• Backspacing: important for inner clearance
• Brake caliper clearance: one of the biggest reasons wheels get rejected
• Suspension clearance: especially on trucks and older vehicles with limited room
• Steering clearance: critical on the front axle

Just because a wheel is advertised for your vehicle does not mean it is automatically right. Every setup needs to be checked.

Common Mistakes People Make

• Assuming correct bolt pattern means correct fit
• Mounting tires before checking clearance
• Ignoring offset and backspacing
• Not rotating the wheel by hand
• Only checking one side and assuming the rest are fine

The big one is simple. People get excited, mount the tires, then figure out the wheel hits the caliper or sits wrong. That is exactly what this step prevents.

Why This Matters on Real Projects

When I test fit wheels, I am not doing it for content. I am doing it because I do not want to eat the cost of a wrong part. That is real shop logic. The time to find out a wheel is wrong is before the tire machine ever touches it.

This is one of those basic rules that saves money, saves aggravation, and keeps a project moving.

Troy’s Shop Takeaway

Always test fit wheels before mounting tires. Every wheel. Every time.

It only takes a few minutes to set the wheel on the hub, spin it, and verify clearance. If the wheel is wrong after the tire is mounted, you usually own the mistake. Test fit first. Always.
